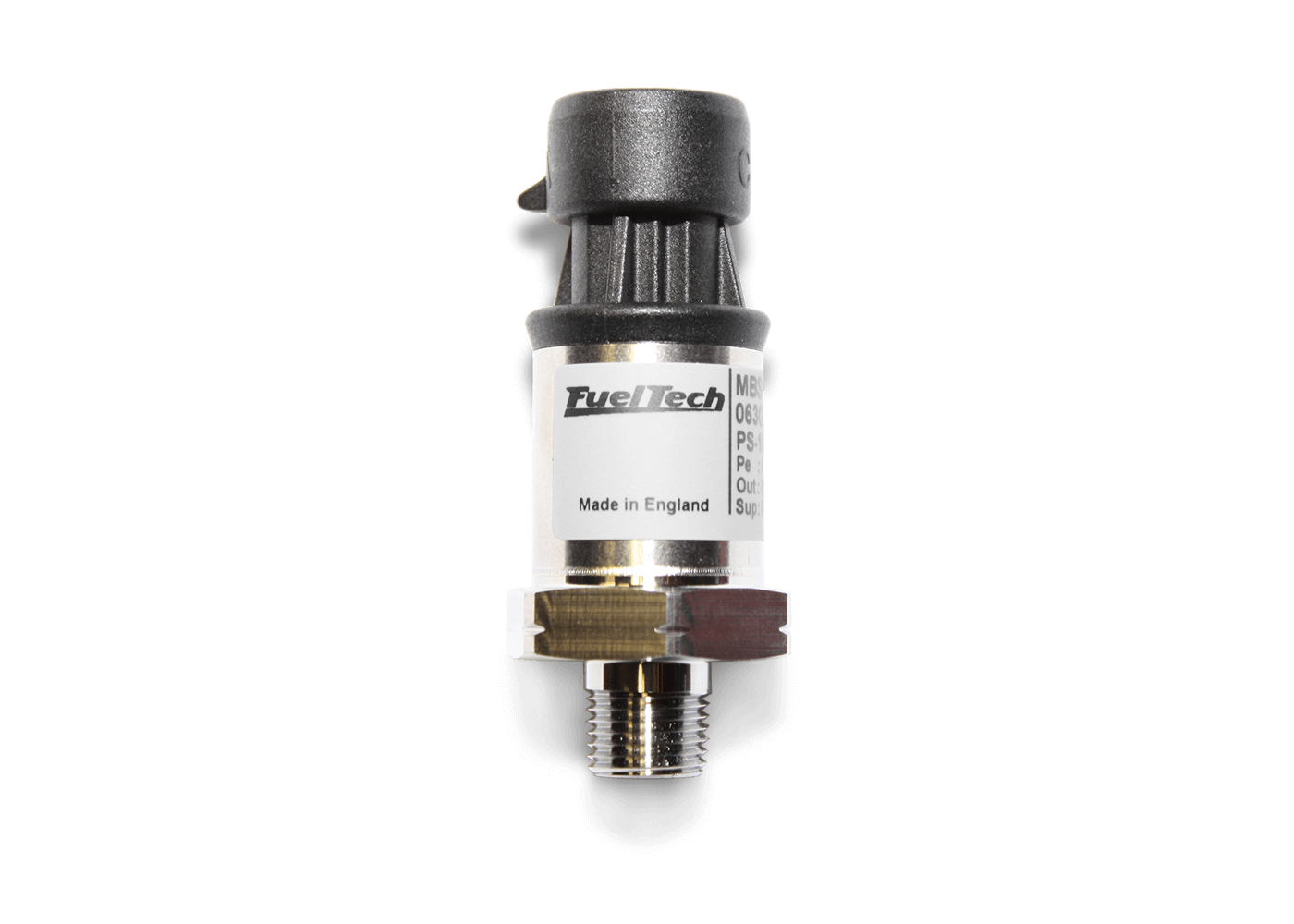

PS-150 Pressure Sensor (0-150 psi)
PS-150 Pressure Sensor (0-150 psi)
FuelTech USA
Couldn't load pickup availability

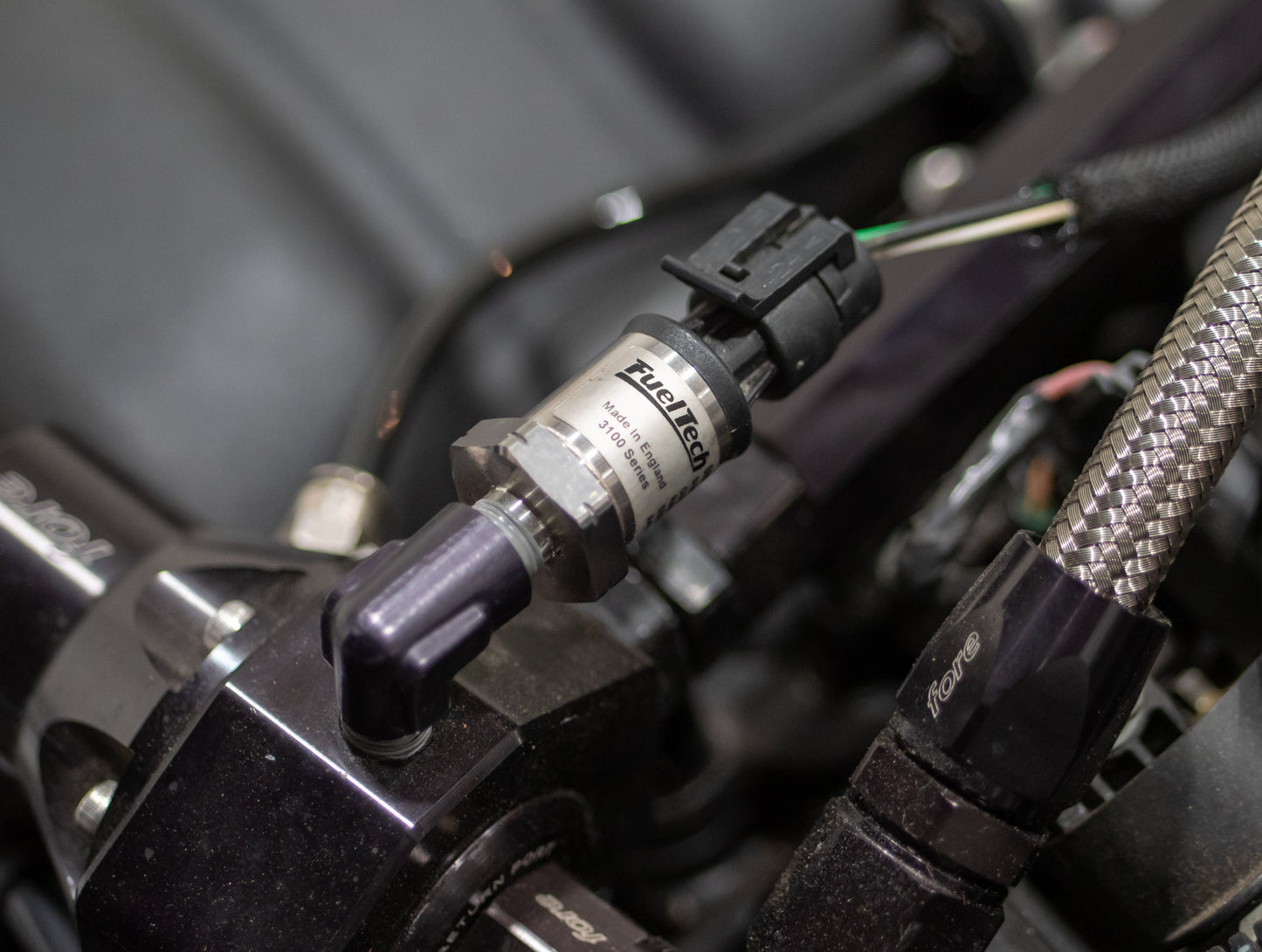

- Typically used to monitor fuel, oil, and wastegate pressure.
TECHNICAL DESCRIPTION
- Output: 0.5-4.5V
- Supply: 5V
- Range: 0-150 psi
- Thread size: 1/8" NPT

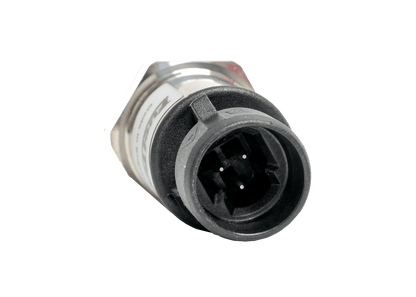

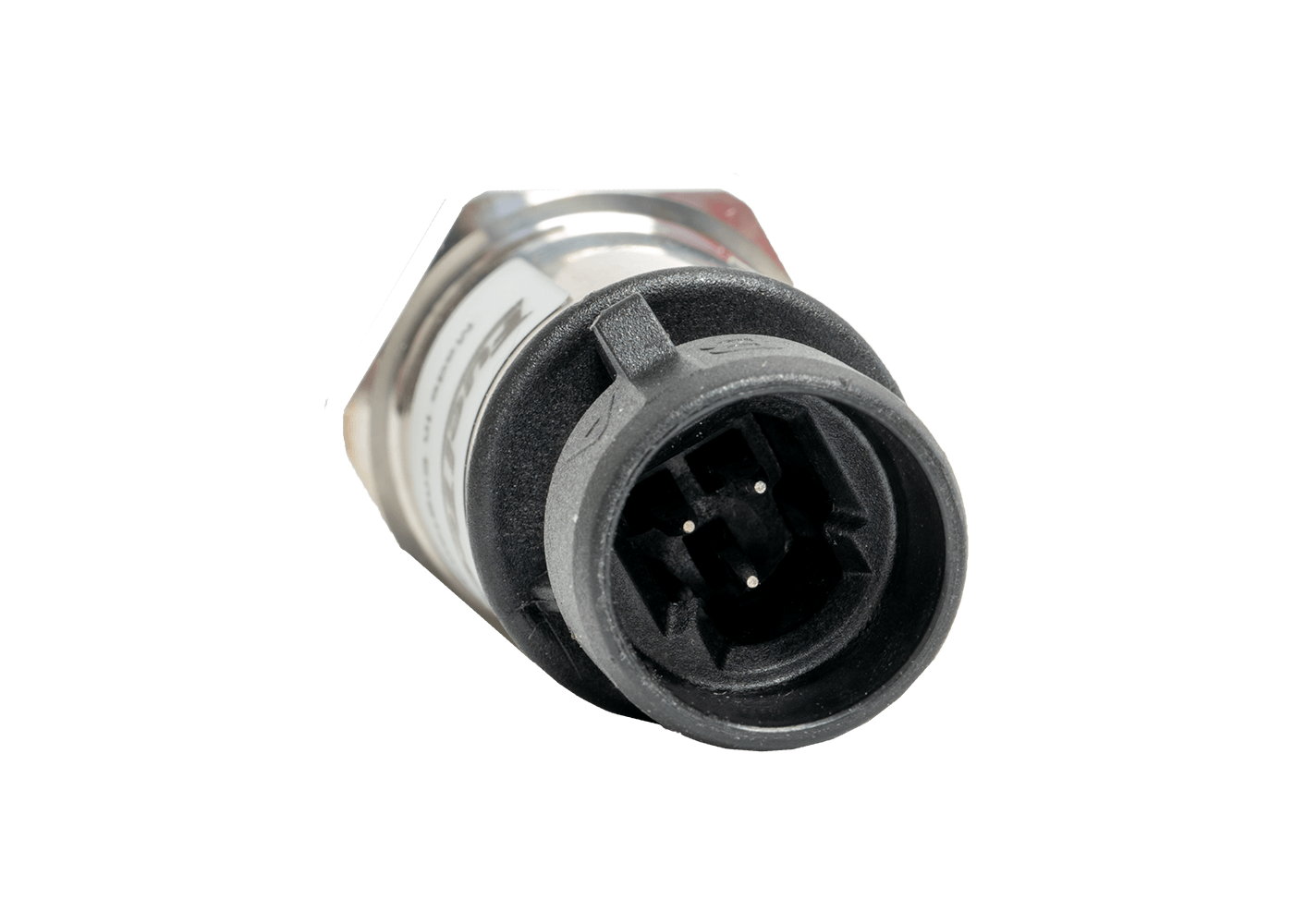

Connector Pinout:
- A - Ground
- B - 5V
- C - Signal
SPECS
Performance Long Term Drift: 0.2% FS/YR (non-cumulative)
Accuracy: 0.25% FS
Thermal Error: 0.83% FS/100°F (1.5% FS/100°C)
Compensated Temp: -40°F to +257°F (-40°C to +125°C)
Operating Temp: -40°F to +257°F (-40°C to +125°C)
Zero Tolerance: 0.5% of span
Span Tolerance: 0.5% of span
Response Time: 1ms
Fatigue Life: 1M Cycles
Wetted Parts: 17-4 PH Stainless Steel
Enclosure: IP67 (IP65 for electrical code G)
Vibration: 40G peak to peak sinusoidal, (Random Vibration 20 to 1000hz @ approx 40G peak per MIL-STD-810E)
Shock: Withstands free fall to IEC 68-2-32 procedure 1
EMC (Radiated Immunity): 100V/m
Approvals: CE, conforms to European Pressure Directive, Fully RoHS compliant, UL recognized files #E219842 & E174228
Weight: 35 Grams
