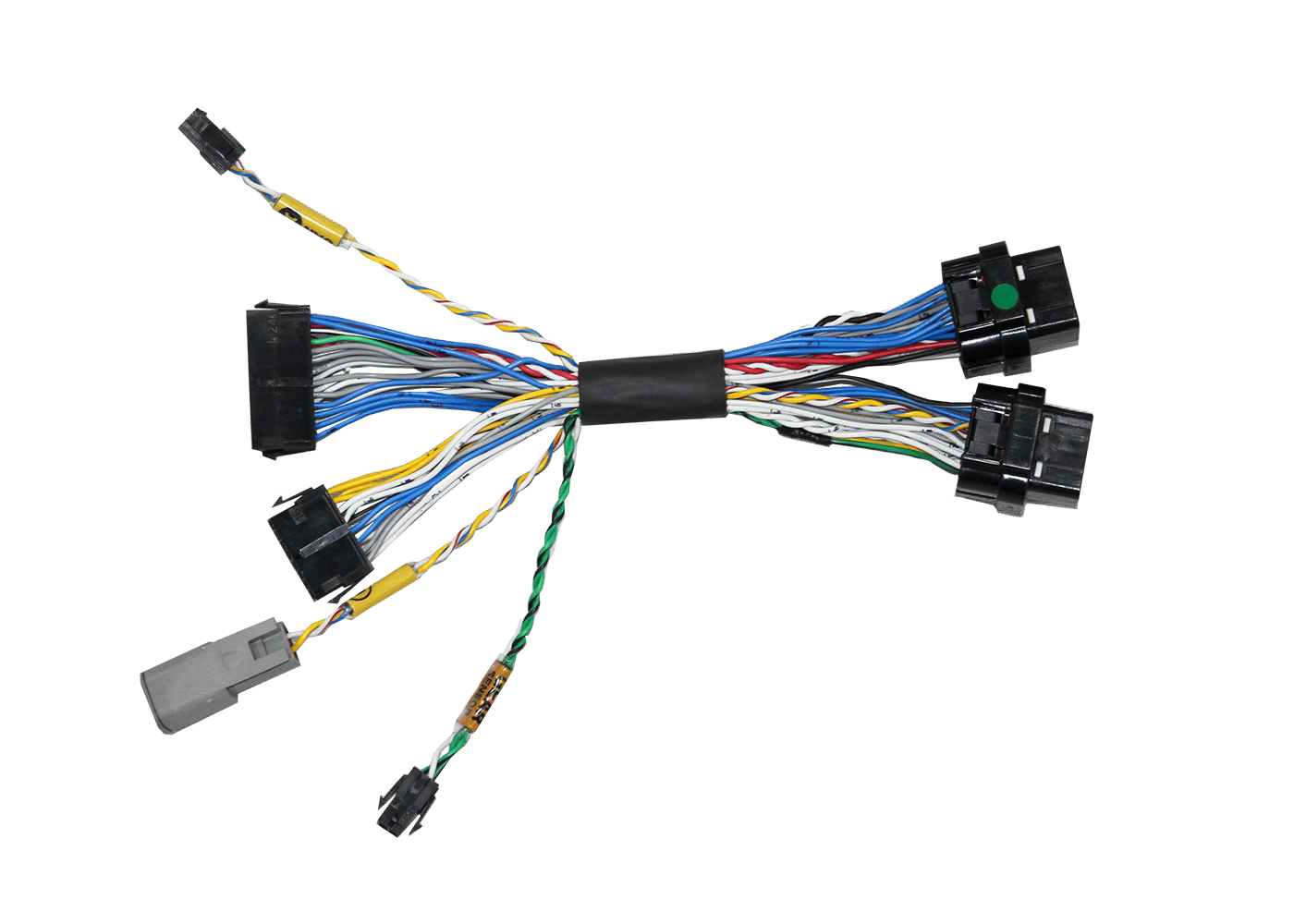

FT500 to FT550 Adapter Harness
- FT500 to FT550 adapter harness
- FT500 to FT550 Adapter Harness Manual
FT500 to FT550 plug and play adapter harness is the fastest way of using a FT550 on an existing FT500 installation.
The adapter is 16 inches long and has 2 FT500 connectors (24 and 16 ways), 2 FT550 connectors (2x 26 ways), 2 CAN connectors and 1 connector for strain gauge shifter (4 ways).
Optional (10) FT550 terminals allow you wire additional inputs/outputs that are available on the FT550 compared to the FT500.
- 1 FT500 main connector - 24 ways
- 1 FT500 auxiliary connector - 16 ways
- 1 FT600 A SUPERSEAL connector - 26 ways
- 1 FT600 B SUPERSEAL connector - 26 ways
- 1 CAN-A connector - 4 ways
- 1 CAN-B connector - 2 ways
