EGT-4 CAN

• Description
• Downloads

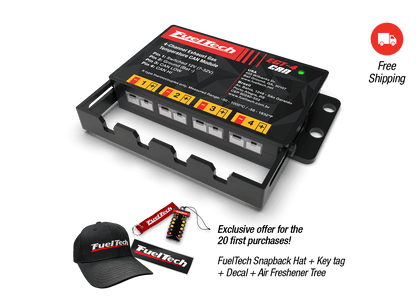

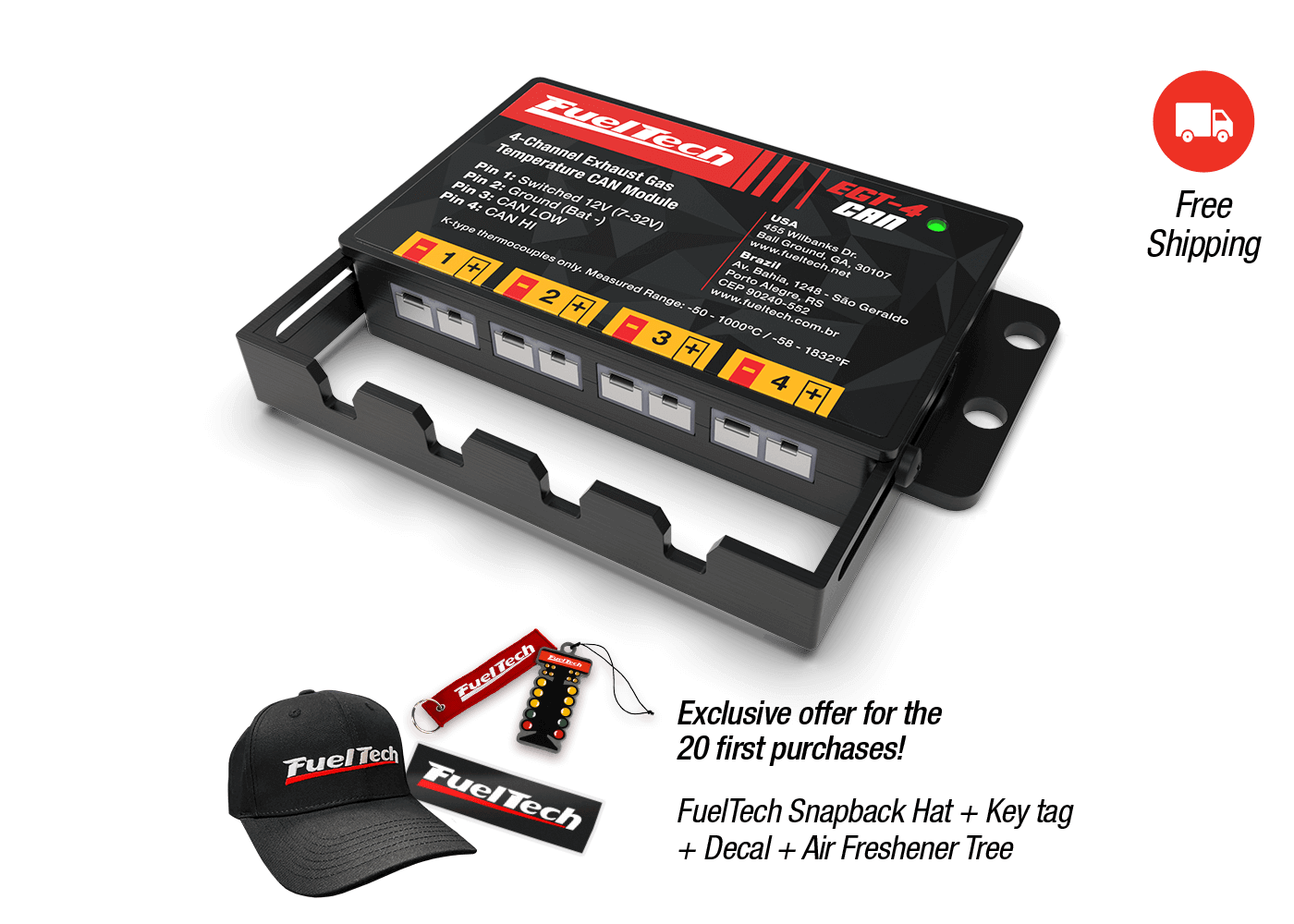

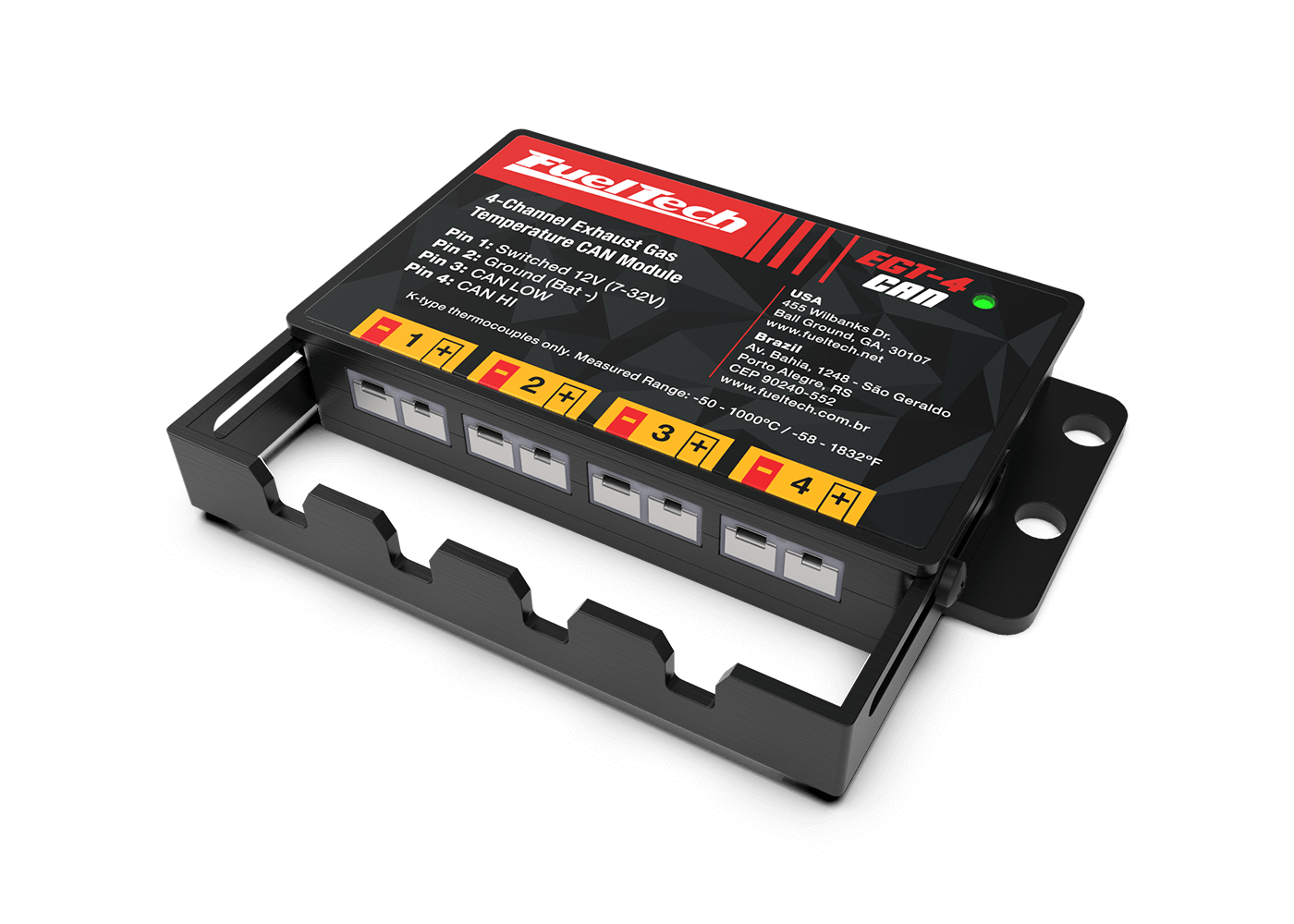

• 4 channel conditioner for Type K thermocouples with CAN communication for PowerFT ECU's.
•  EGT-4 CAN Manual

FEATURES

• The FuelTech EGT-4 CAN is compatible with any type K thermocouple (grounded junction or not).
• 4 channel signal conditioner with CAN bus communication for PowerFT ECU's, can be used to read EGT's, CHT's, oil, air, water or any other temperature using a type K thermocouple.
• Works as an input expander for PowerFT ECU's, freeing up 4 white input channels to be used ofr other purposes.
• With the possibility to use up to 4 EGT-4 modules in the same installation, as much as 16 different channels will be available for all sorts of data aquisition.
• Compatible with PowerFT ECU's (FT450, FT550, FT600, FT500LITE and FT 550LITE).

PACKAGES

V8 / 2 units, harnesses and 8 sensors:

• w/ 2 harnesses
• 2 of each 42"/36"/30"/24" Thermocouple sensors included
• Add second EGT-4 CAN unit

6 cylinder / 2 units, harnesses and 6 sensors:

• w/ 2 harnesses
• 48"/42"/36"/30"/24"/18" Thermocouple sensors included
• Add second EGT-4 CAN unit

4 cylinder / harness and 4 sensors:

• w/ harness
• 42"/36"/30"/24" Thermocouple sensors included

4 rotor / harness and 4 sensors:

• w/ harness
• 4 of the 36" Thermocouple sensors included

3 rotor / harness and 3 sensors:

• w/ harness
• 3 of the 36" Thermocouple sensors included

2 rotor / harness and 2 sensors:

• w/ harness
• 2 of the 36" Thermocouple sensors included

TECH DESCRIPTION

• Inputs: 4 type K thermocouple inputs
• Outputs: 1 CAN
• Dimensions:
• Product EGT-4 CAN : 4.33 x 2.28 x 0.7 in
• EGT-4 CAN Packaging: 8.78 x 6.38 x 2.36 in
• Weight:
• Product EGT-4 CAN : 4.87 oz
• EGT-4 CAN Packaging without harness 78.75 in: 12.13 oz

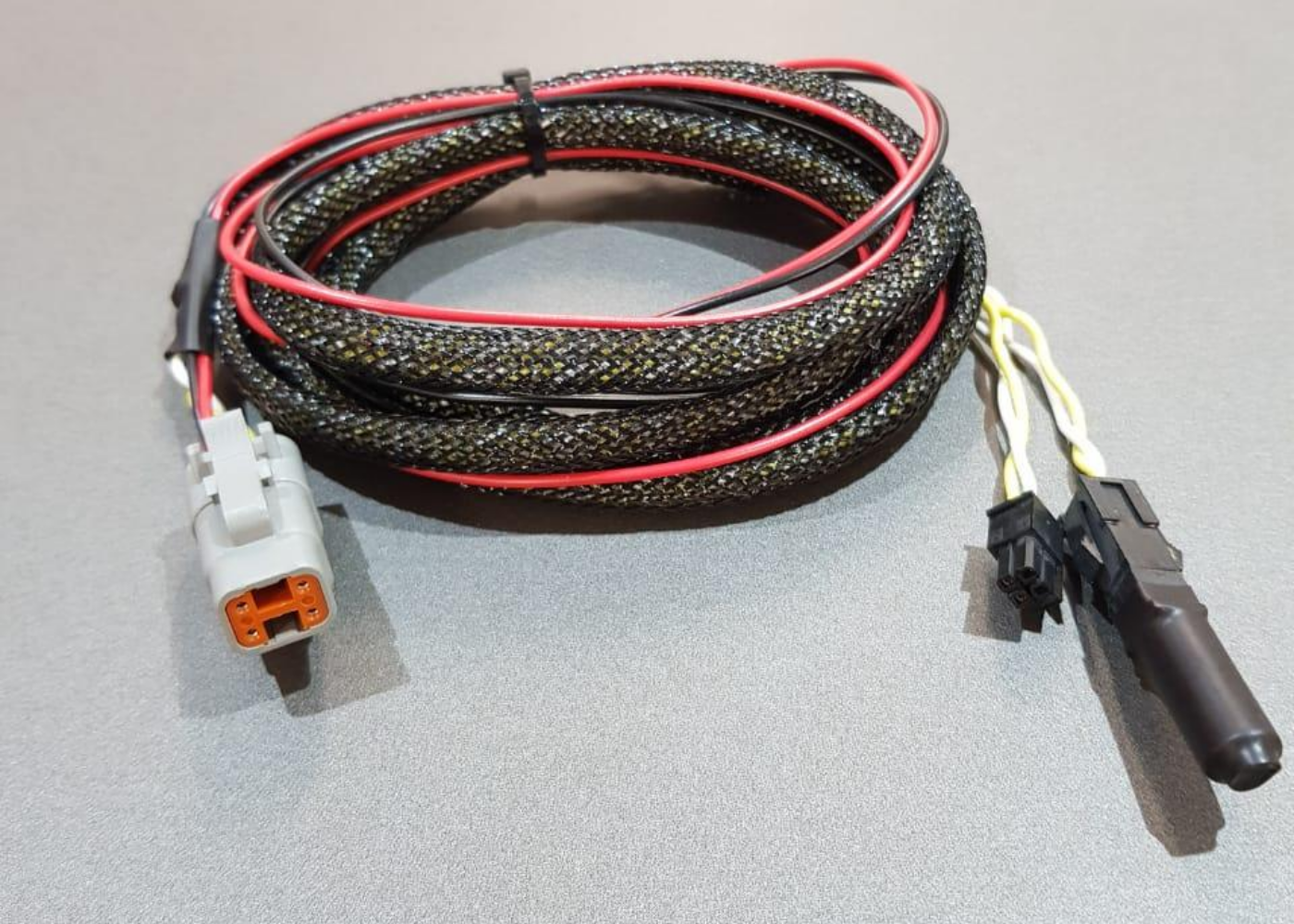

• Harness SwitchPanel / EGT-4 CAN 78.75 in: 2.54 oz
• Contents of packaging:
• 1 EGT-4 CAN with Harness
• 1 Installation and operation manual
• Warranty:
• Worldwide: 1 year
