Travel Sensor

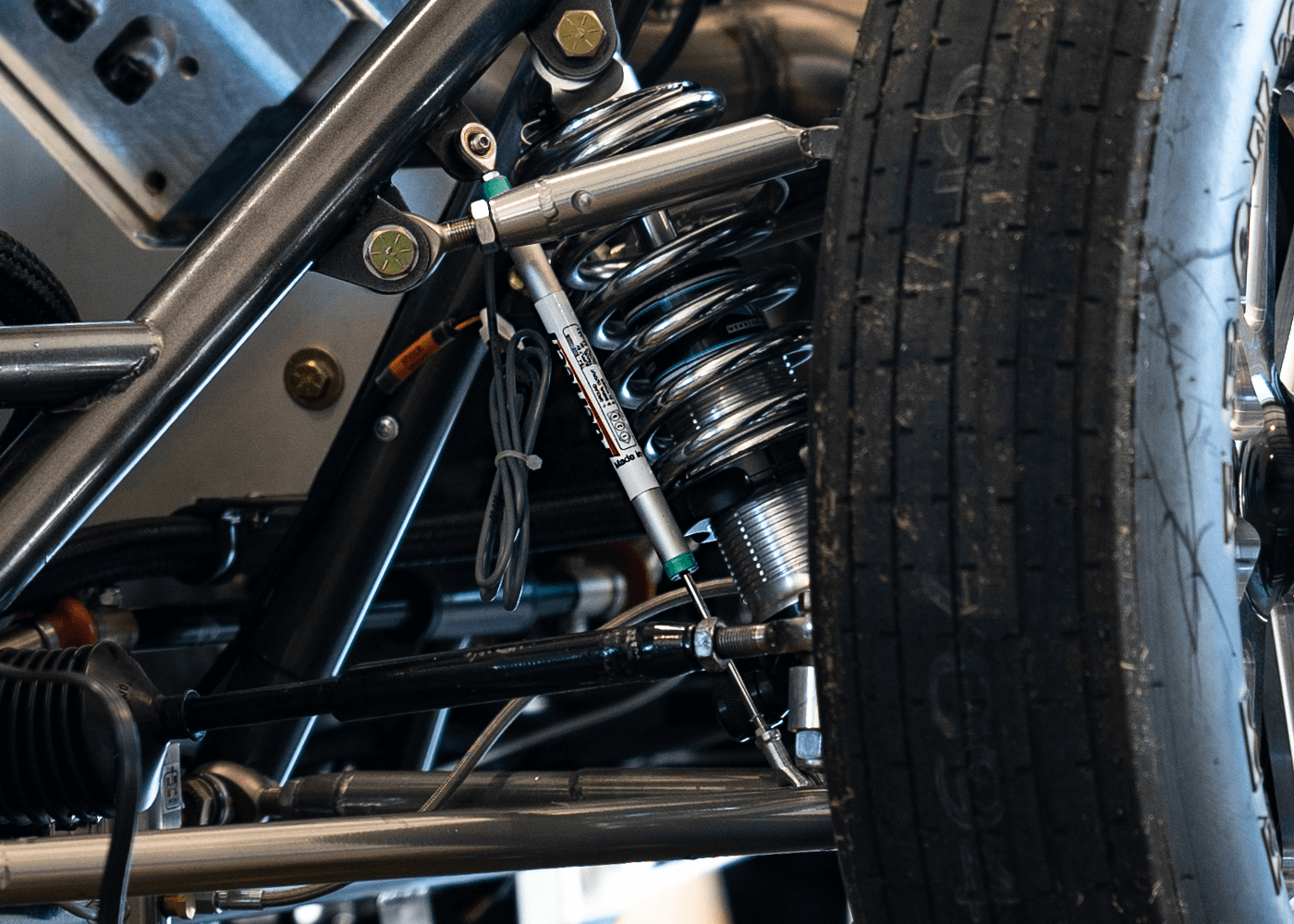

The best way of monitoring your vehicle`s suspension and body movements. Available travel lengths: 0-4", 0-8".

Can be used with any FuelTech Power FT ECU.

Technical Description

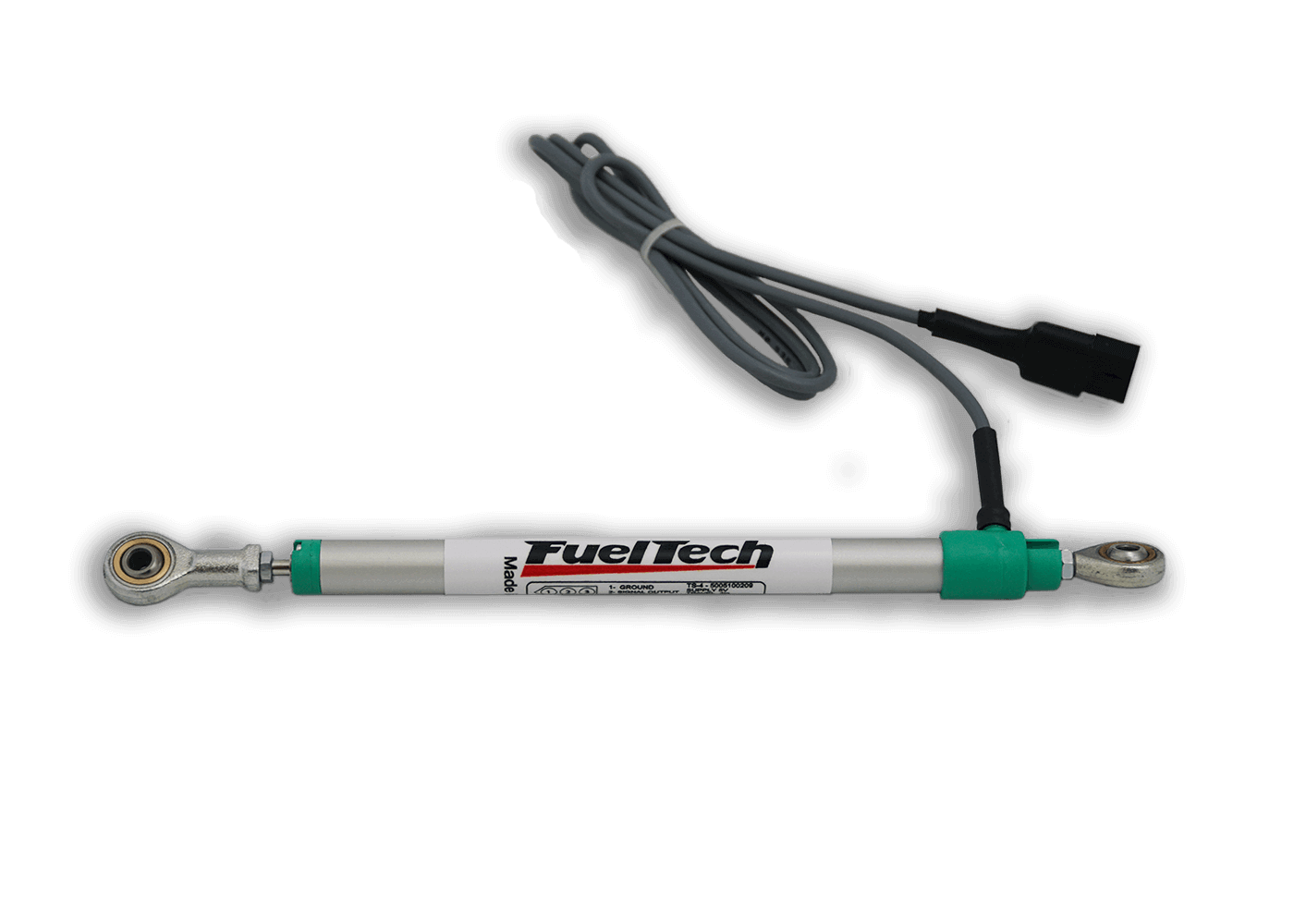

4" Travel Sensor:

• Total Travel: 4"
• Length Closed: 9"
• Length Extended: 13"
• Mounting: 5mm Heim joints
• Cable Length: 41"

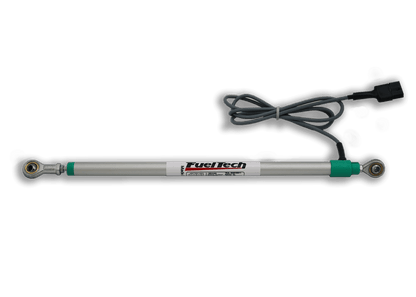

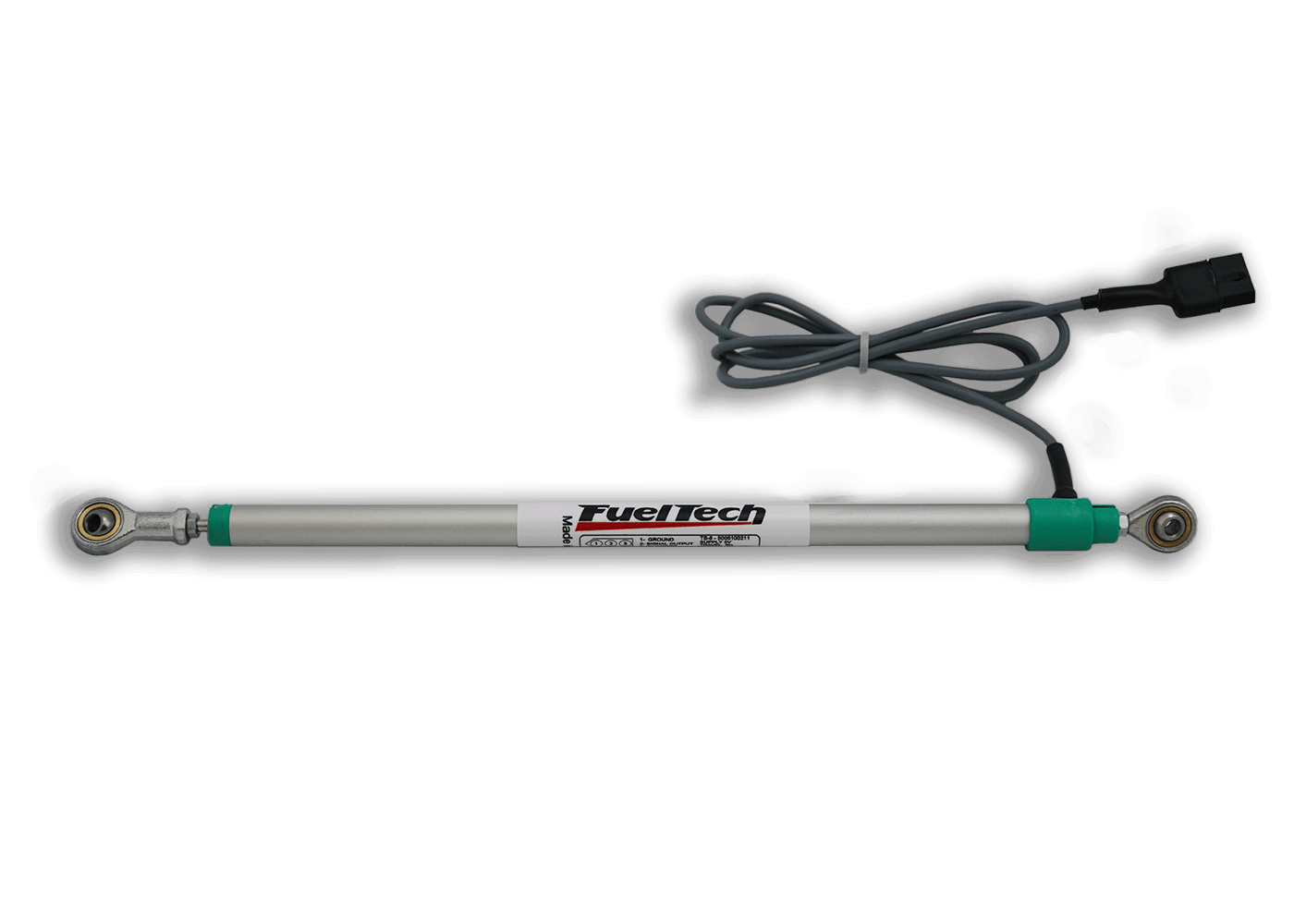

8" Travel Sensor:

• Total Travel: 8"
• Length Closed: 13"
• Length Extended: 21"
• Mounting: 5mm Heim joints
• Cable Length: 41"

Voltage/Output:

• Supply voltage: 5V
• Signal Output: 0.5V - 4.5V

Connector Pinout:

• Pin 1 - Ground (Brown)
• Pin 2 - Signal (Yellow)
• Pin 3 - 5V (Blue)
