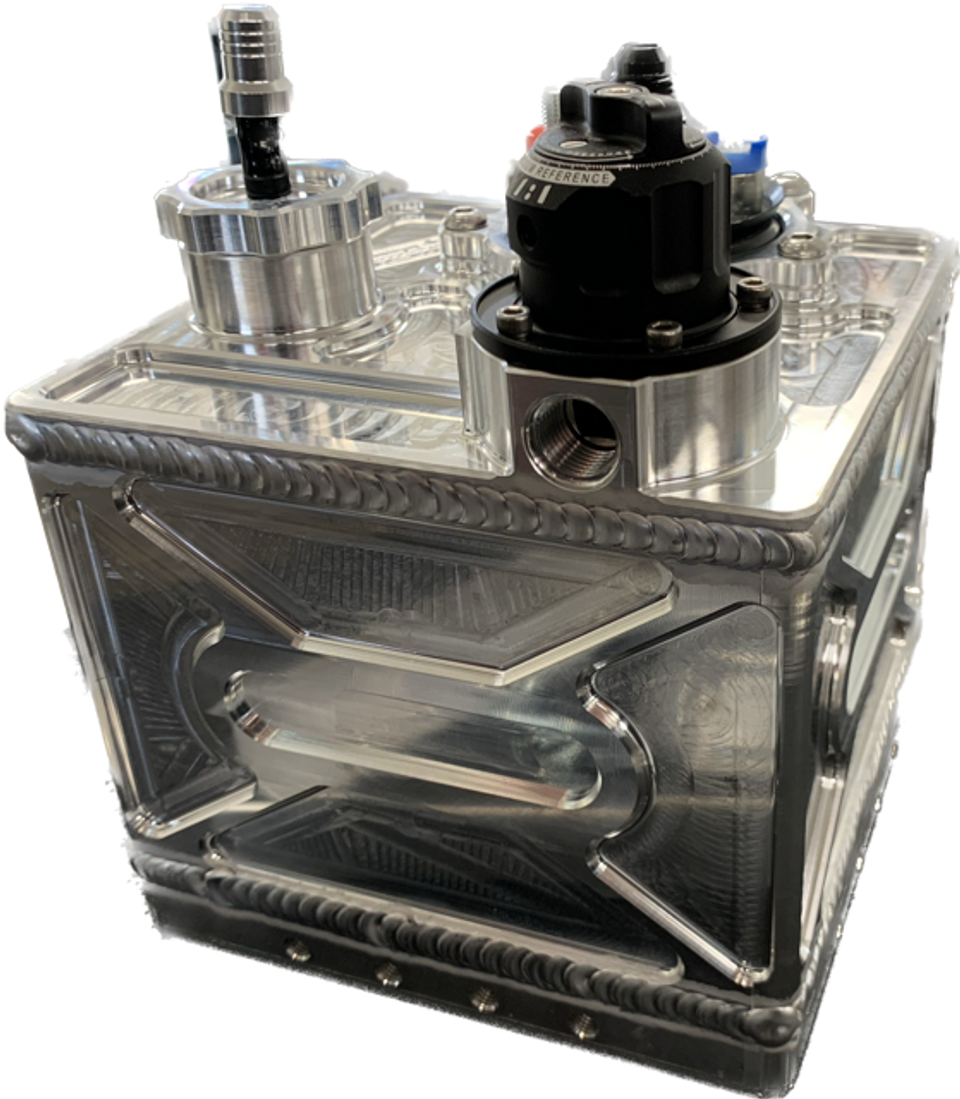

Self-Contained Fuel Cell W/ Pump and Regulator

These fuel cells are completely self-contained with fuel pump and 1:1 rising rate regulator good for boosted, nitrous and N/A applications. The fuel pump is an AEM 400LPH. good for use with gas and most ethanol and methanol fuels (shortens pump life). Fuel cell is 2qts. (1/2 GALLON) has a 1-way vented cap, universal mounting brackets and a drain port in the bottom that can also be used to feed an aux. fuel pump for nitrous. the bolt pattern for the mounts is the same as the nitrous bottle mount tab on DME swingarms for easy 1st. point mounting on bikes equipped with DME swingarms and at least 6" of mounting space in each direction. These cells are universal so they can be used on anything you are looking to drag race that requires a small fuel cell.

*Cell dimensions are 6" square X 7.5" tall at pump fitting.

*Easy 2-line 2 wire hookup.

*1/2 Gallon Capacity

*AEM 400LPH Pump

*1:1 Rising Rate Regulator

*Pressure/Sensor Port

ALSO AVAILABLE WITH SMALLER PUMP.

These fuel cells are completely self-contained with fuel pump and 1:1 rising rate regulator good for boosted, nitrous and N/A applications. The fuel pump is an WALBRO 255LPH. NOT FOR USE with ethanol and methanol fuels(MUST BUY BIG PUMP CELL). Fuel cell is 2qts.(1/2 GALLON) has a 1 way vented cap, universal mounting  brackets and a drain port in the bottom that can also be used to feed an aux. fuel pump for nitrous. the bolt pattern for the mounts is the same as the nitrous bottle mount tab on DME swingarms for easy 1st. point mounting on bikes equipped with DME swingarms and at least 6" of mounting space in each direction. These cells are universal so they can be used on anything you are looking to drag race that requires a small fuel cell.

*Cell dimensions are 6" square X 7.5" tall at pump fitting.

*Easy 2-line 2 wire hookups.

*1/2 Gallon Capacity

*Walbro 255LPH Pump (500hp. max)

*1:1 Rising Rate Regulator

*Pressure/Sensor Port
