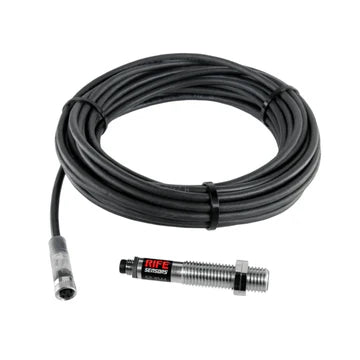

RIFE Driveshaft Speed Sensor Ferrous Tooth Hall Effect M12 x 1.5

Note: This RIFE Hall Effect Ferrous trigger wheel is designed for metal triggering (not magnetic).

This M12x1.5 threaded sensor is identical to the previously utilized Red / Cherry Hall effect sensor found in legacy Motion driveshaft sensor kits.

Features:

• True zero speed ferrous tooth speed detection
• High Accuracy
• Low Jitter data
• Accurate up to 12,000 rpm with 60-2 pickup
• 0-5V or 0-12v sensor capability

• M8 Quick Connect cable
• CNC machined steel body resists crushing or stretching when compared to aluminum sensor bodies
• Machined, assembled,
• Dimple alignment machined into sensor to identify orientation of Hall Effect IC in sensor body
• Each sensor tested before packaging
• Included LED 25 ft cable for direct wiring to ECU
• Designed, Machined, Assembled, Tested in house at Motion Raceworks Dewitt, IA


Included:

• Driveshaft Sensor
• (2) M12 x 1.5 jam nuts
• Shielded LED lit cable

LED Colors: These LED's provide status of the sensor and what it is currently sensing. When operating properly the LED will alternate between the two colors as the ferrous wheel turns.

• Green: Sensor has power / ground and is not sensing ferrous within range (sensor is not sensing a metal tooth)
• Yellow: Sensor is picking up ferrous tooth and sending peak signal to ECU
