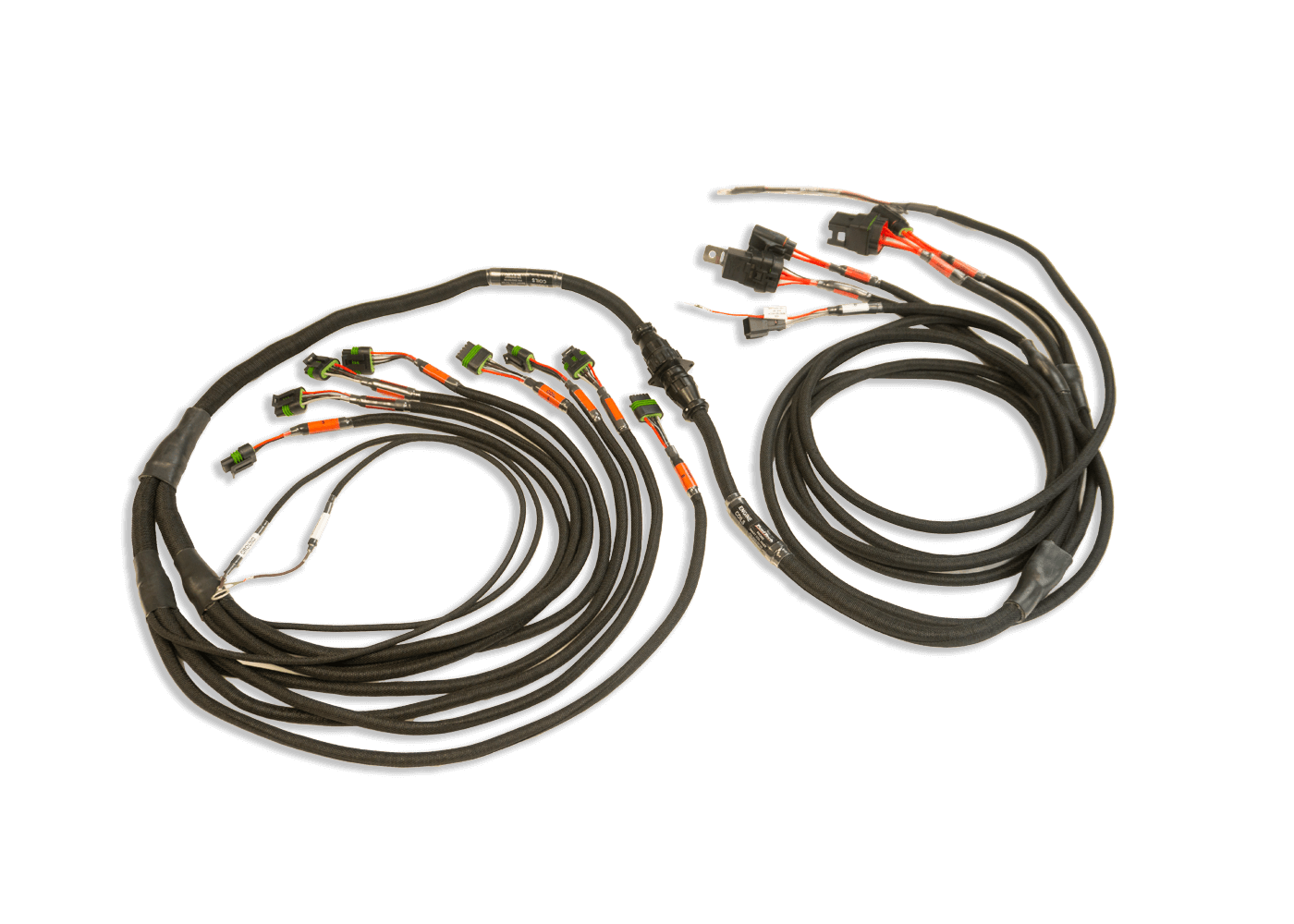

PRO550/600 V8 Smart Coil Harness
The FuelTech PRO550/600 Smart Coil harness is a true plug and play expansion to complement both the PRO550 and PRO600 V8 harness. With this expansion harness the user can make the change to multi smart coils with ease! The harness is fitted with a 16 way CPC firewall connection making adding the smart coils a simple installation! The harness includes all terminations to suit the smart coils, FuelTech CAN connection and output controls. The FuelTech PRO550/600 Smart Coil harness has a label for each connector and the insulation is heat, moisture and oil resistant.
- For use with our Smart Ignition Coils (w/ built-in igniter)
- Plug n’ Play design for use with the PRO600 Harness
- Uses Outputs B (Gray wires) on PRO600 Harness
- Includes: Fuse, Relay, Power and ground ring terminals (battery) and 10-way Connector with wires for connection with the ECU and CPC connector for the firewall.
Please contact us with any questions to confirm compatibility with your setup.
