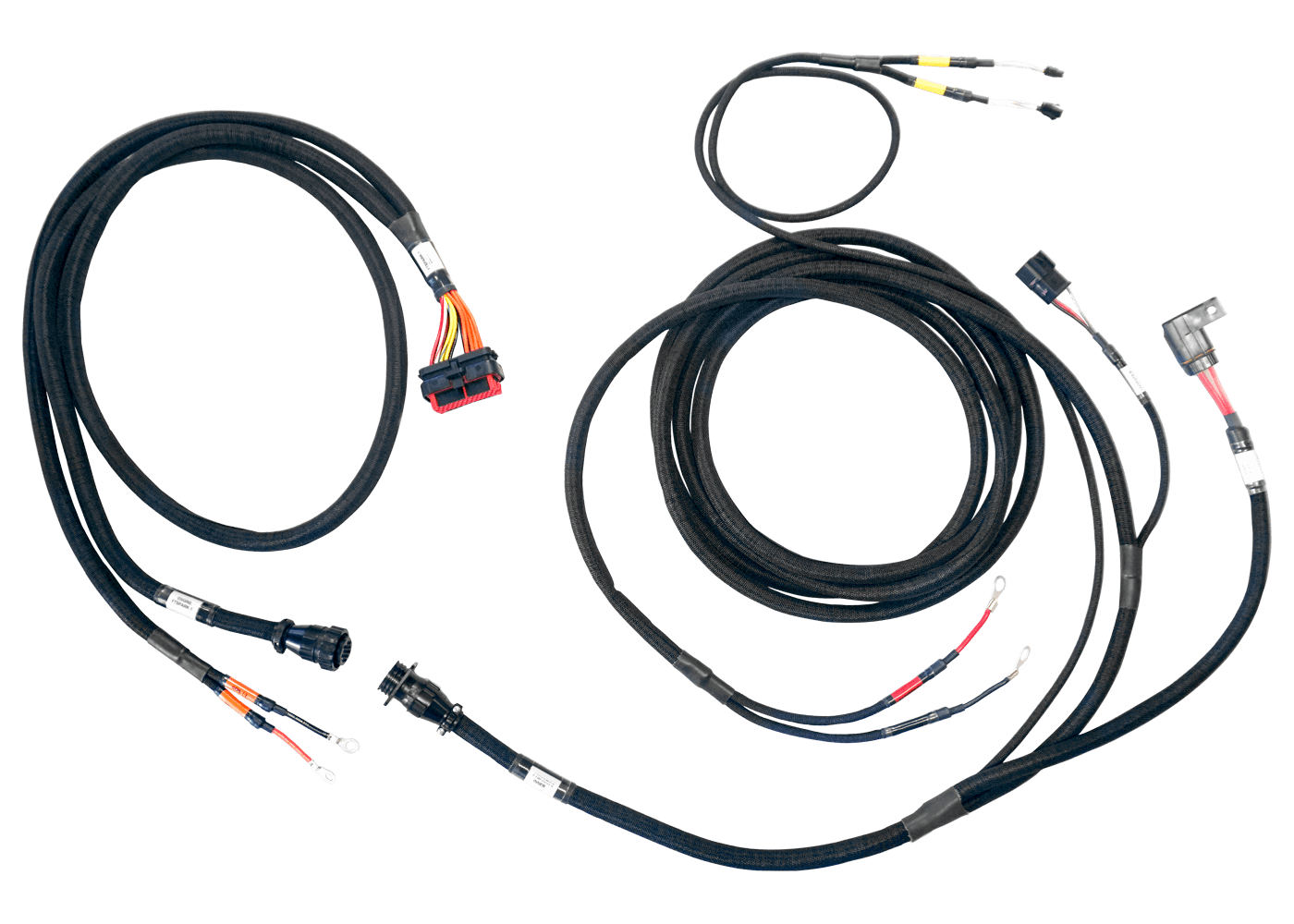

PRO550/600 FTSPARK-1 Harness
The FuelTech PRO550/600 FTSpark-1 harness is a true plug and play expansion to complement both the PRO550 and PRO600 V8 harness. With this expansion harness the user can make the change to a high powered distributor based single coil setup with ease! The harness is fitted with a 16 way CPC firewall connection making adding the coil and FTSpark-1 a simple installation! The harness includes all terminations to suit the HVC-II coil, FuelTech CAN connection and output controls. The FuelTech PRO550/600 FTSpark-1 harness has a label for each connector and the insulation is heat, moisture and oil resistant.
- For use with our FTSPARK-1 CDI module and MSD HVC-II coil (#8261).
- FTSPARK is a high power CDI ignition module compatible with ANY ECU on the market.
- Plug n’ Play design for use with the PRO600 Harness.
- Uses Outputs B (Gray wires) on PRO600 Harness.
- Includes: CAN connector, power and ground ring terminals (battery) and 10-way Connector with wires for connection with the ECU and CPC connector for the firewall.
