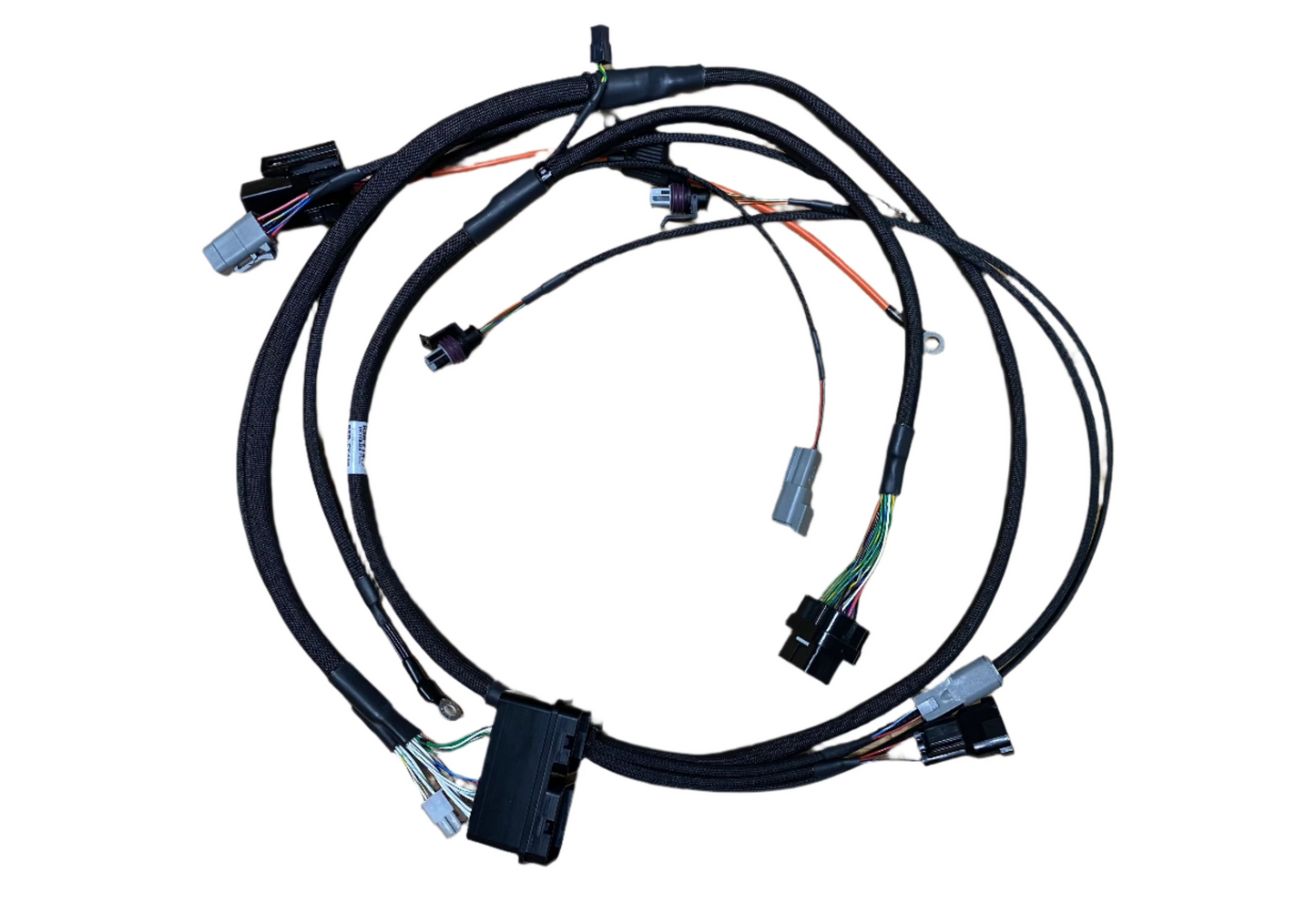

FuelTech FT450 Hayabusa Gen 1 Plug N Play Harness

This plug n play harness for a Hayabusa Gen 1 motorcycle makes install a breeze. Harness includes FT450 connectors, O2 Nano and O2 Sensor connections, extra pin terminal for the horn button, speed sensor, shift solenoid connector, oil pressure, extra input and outputs, sparkpro4 and factory style ecu connections.

24-1 crank trigger flywheel is recommended. The 8 tooth trigger for Gen 1 can be used but is not recommended.

24V start is highly recommended.

Fans are not wired into ECU.

Please allow for a 2-3 week build time at this time.

Inputs:

1. TPS
2. Engine Temp
3. Extra PSI
4. Oil PSI
5. Horn button for shift, nitrous activation or scramble
6. 2 step on clutch switch
7. Factory speed sensor

Blue Outputs:

1. Injectors 1-4
2. Injectors 2-3
3. Gear shift output
4. Fuel pump
5. Extra
6. Extra

Gray Outputs:

1. IGN 1
2. IGN 2
3. IGN 3
4. IGN 4

This harness can also be used with a FT550 and a FT550 B unterminated harness can be purchased for you to expand the inputs and outputs.

Harness can be bought with just the harness or complete kits.

Naturally aspirated kit includes:

• FT450
• Sparkpro4
• O2 Nano. (Not nanopro)
• O2 Sensor
• 0-150 oil pressure sensor
• Oil pressure remote mount kit
• Hayabusa Gen 1 plug n play harness

Nitrous kit includes:

• FT450
• Sparkpro4
• O2 Nano. (Not nanopro)
• O2 Sensor
• 0-150 oil pressure sensor
• Oil pressure remote mount kit
• 0-1500 nitrous pressure sensor
• Single nitrous driver (Solid state relay)
• Hayabusa Gen 1 plug n play harness
